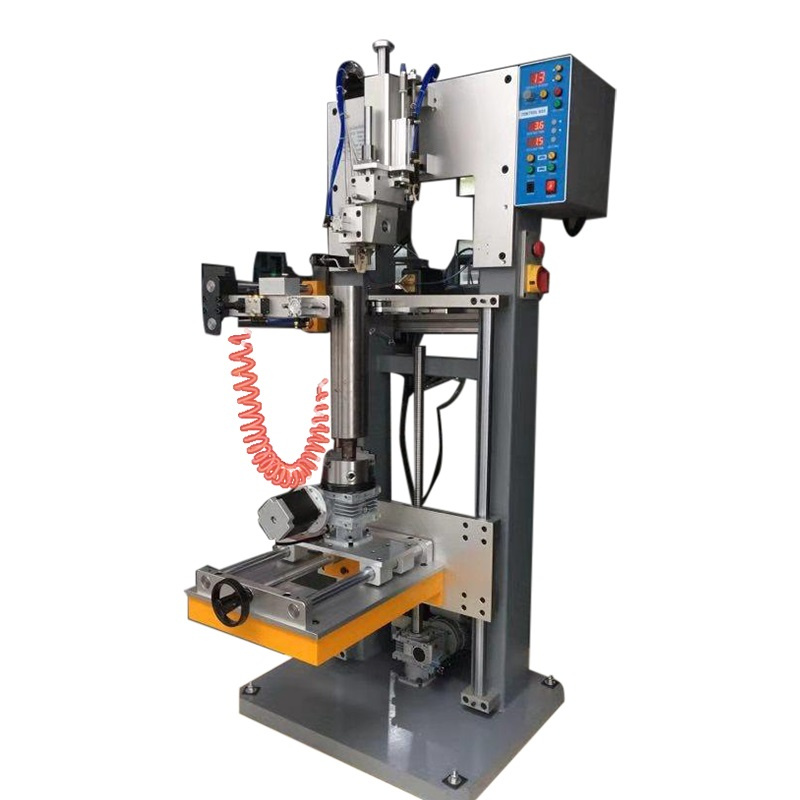

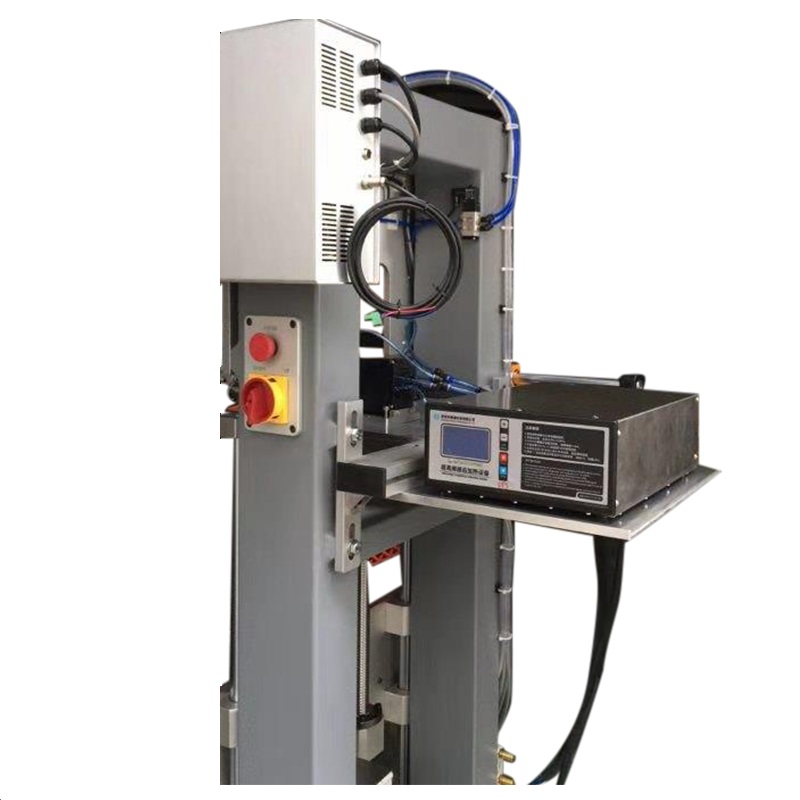

Core Drill Brazing Machine
1. Product Overview
Designed for high-frequency induction brazing of carbide core drills, this machine uses IGBT high-frequency power to achieve strong bonding between drill tips and steel bodies. It supports 30-200mm core drills for construction drilling, pipe processing, and stone cutting applications.
2. Core Features
(1) High-frequency Brazing Technology
20-80kHz induction heating, single-point welding ≤8s
Temperature control ±3℃ for pore-free solder layers
(2) 3-axis Servo System
Positioning accuracy ±0.03mm for precision welding
Automatic feeding, hourly capacity 150-300 pieces
(3) Intelligent Temperature Control
Infrared real-time monitoring with PID algorithm
Stores 10 welding programs for quick switching
(4) Safety Protection Design
Electromagnetic shielding (radiation ≤1mG)
Emergency stop + anti-scald protection
3. Technical Parameters
Parameter Type | Specific Value |
Welding Power | 15-40kW (adjustable) |
Drill Diameter | 30-200mm |
Welding Thickness | 0.3-3mm |
Positioning Acc | ±0.03mm |
Power Supply | 3-phase 380V/50Hz |
4. Applications
Construction: Concrete core drill and hollow bit brazing
Pipe Installation: Metal pipe hole cutter welding
Stone Processing: Marble/granite core drill brazing
5. Customization Services
Multi-station welding platform customization
Non-standard core drill brazing solutions
Production line integration support
6. Quality Assurance
12-month warranty for key components
Operation training and process guidance provided
24/7 after-sales response
