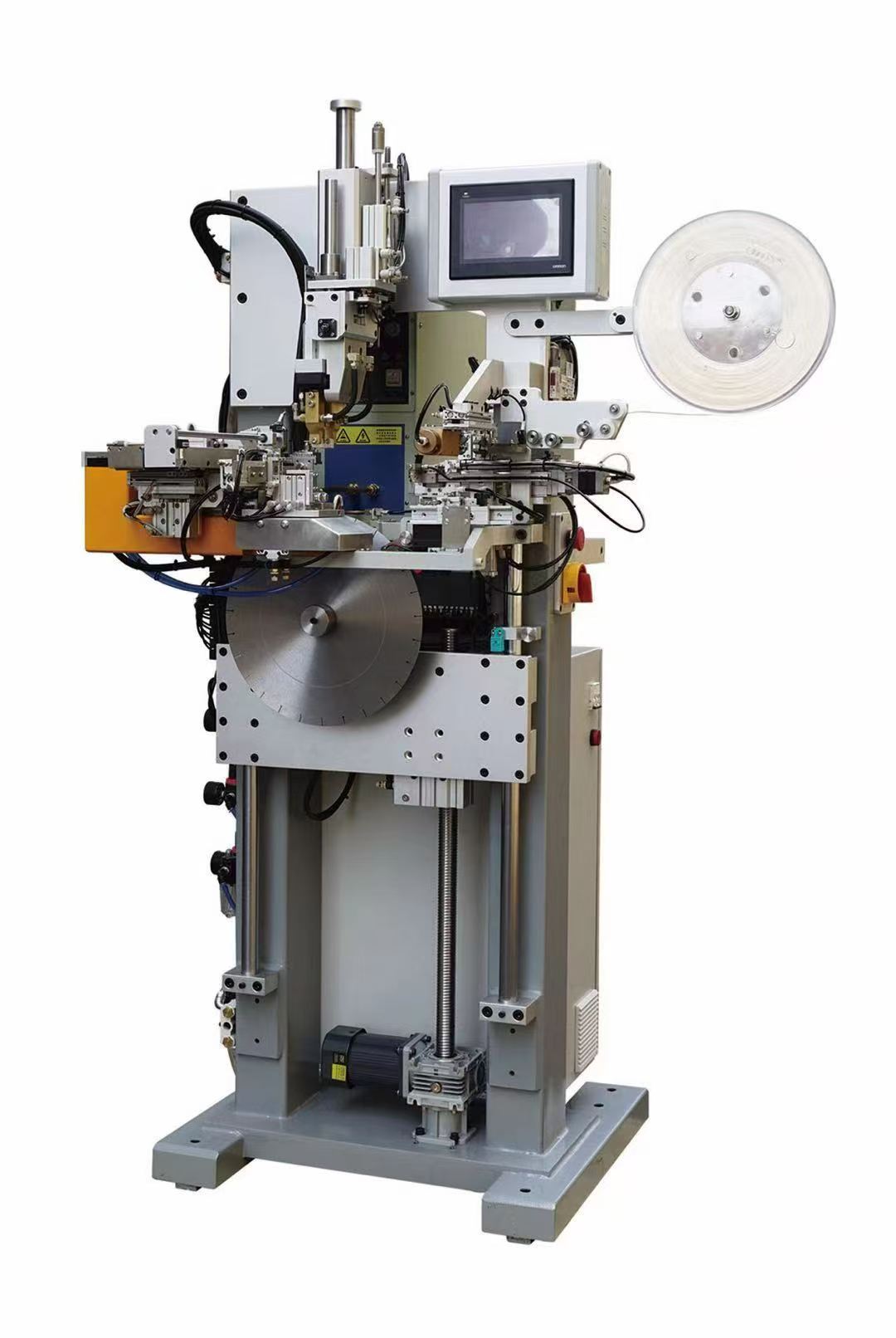

Saw Blade Brazing Machine
1. Product Overview
Designed for brazing carbide and HSS saw blades, this machine uses high-frequency induction technology for high-strength bonding of blade tips to substrates. It balances welding efficiency and precision, supporting 100-600mm saw blades for woodworking, metal processing, and stone cutting industries.
2. Core Features
(1) High-frequency Induction Brazing
IGBT high-frequency power supply (20-100kHz), heating time ≤10s/point
Temperature control ±5℃ for uniform solder layers
(2) Automated Welding System
3-axis servo positioning (±0.05mm), supports complex trajectories
Automatic feeding, hourly capacity 200-500 pieces
(3) Intelligent Temperature Control
Infrared real-time monitoring with overheat protection
Stores 20 welding programs for one-touch switching
(4) Ergonomic Design
Touchscreen operation for easy parameter setting
Safety protections (EMI shielding, anti-scald)
3. Technical Parameters
Parameter Type | Specific Value |
Welding Power | 20-60kW (adjustable) |
Saw Blade Diameter | 100-600mm |
Welding Thickness | 0.5-5mm |
Positioning Acc | ±0.05mm |
Power Supply | 3-phase 380V/50Hz |
4. Applications
Woodworking: Solid wood and composite board saw blades
Metal Processing: HSS and carbide saw blades
Stone Processing: Granite and marble saw blades
5. Customization
Welding station customization (single/multi-station)
Special specification saw blade solutions
Automated production line integration
6. Quality Assurance
12-month warranty for key components
Free operation training provided
24/7 after-sales technical support
