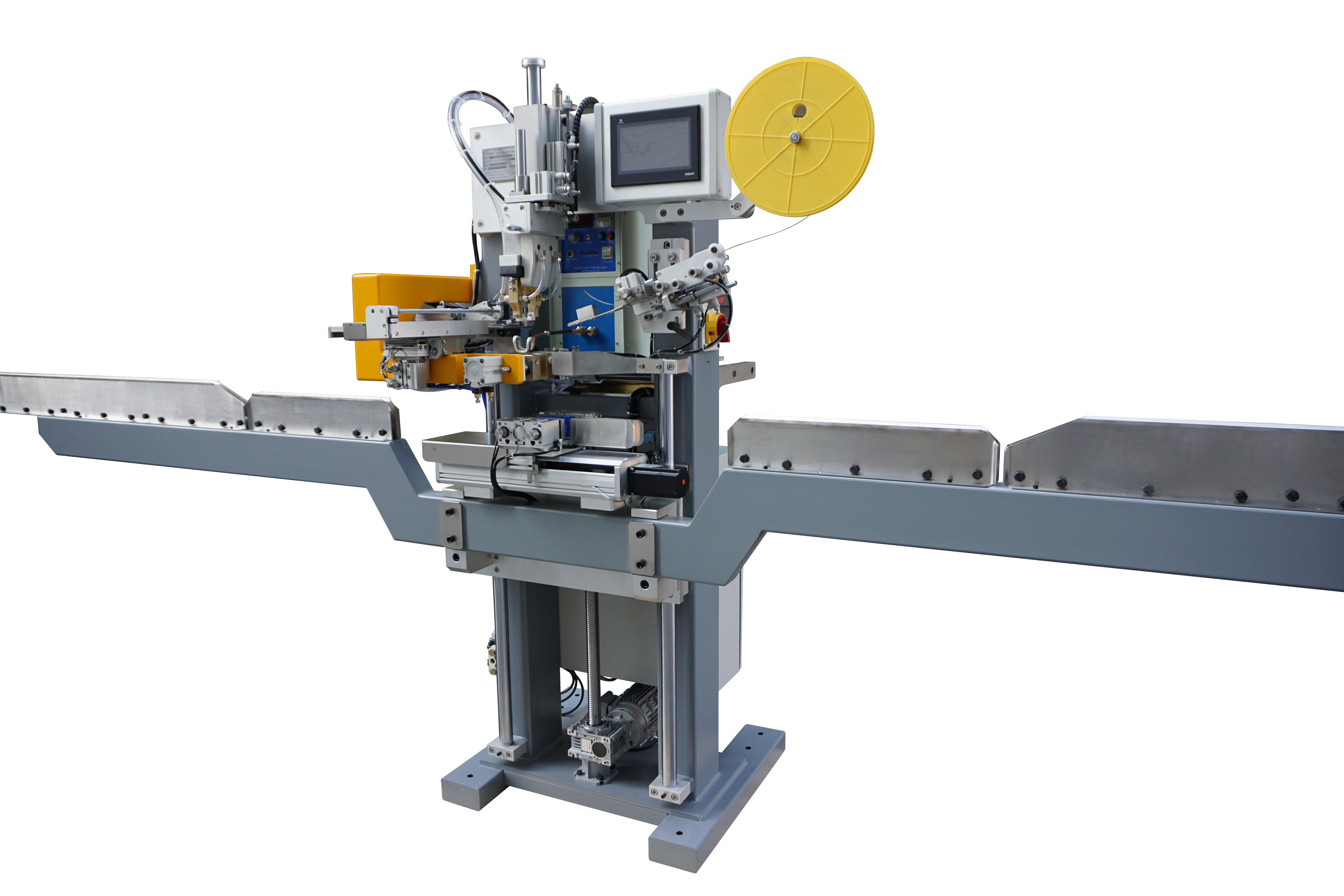

1. Product Overview

Designed for high-frequency induction brazing of gang saw blades in metal/stone processing, this machine uses multi-station synchronous welding to achieve strong bonding between teeth and substrate. It supports 50-300mm wide gang saws for large plate cutting and mining applications.

2. Core Features

(1) Multi-station High-frequency Brazing

4-8 induction heating heads working synchronously, 1m welding ≤20s

Temperature uniformity ±5℃, solder layer strength ≥450MPa

(2) CNC Synchronization System

7-axis 联动 control (positioning accuracy ±0.05mm)

Automatic deviation correction for gang saw straightness ≤0.1mm/m

(3) Intelligent Feeding Mechanism

Servo-driven feeding (0.5-3m/min speed)

Tension control system (error ≤±2N) to prevent blade deformation

(4) Modular Design

Expandable welding stations (supporting ≥12 stations customization)

Quick-change structure for ≤15-min specification switching

3. Technical Parameters

4. Applications

Stone Processing: Marble/granite gang saw brazing (≥200mm plates)

Metal Cutting: Steel plate and non-ferrous metal gang saw welding

Mining: Quartzite/basalt mining gang saw brazing

5. Customization Services

Ultra-long gang saw welding solutions (supporting ≥20m)

Special tooth profile gang saw welding mold design

Automated production line integration

6. Quality Assurance

24-month warranty for key components

Welding process optimization training provided

48-hour on-site service (domestic)
